Product Description:

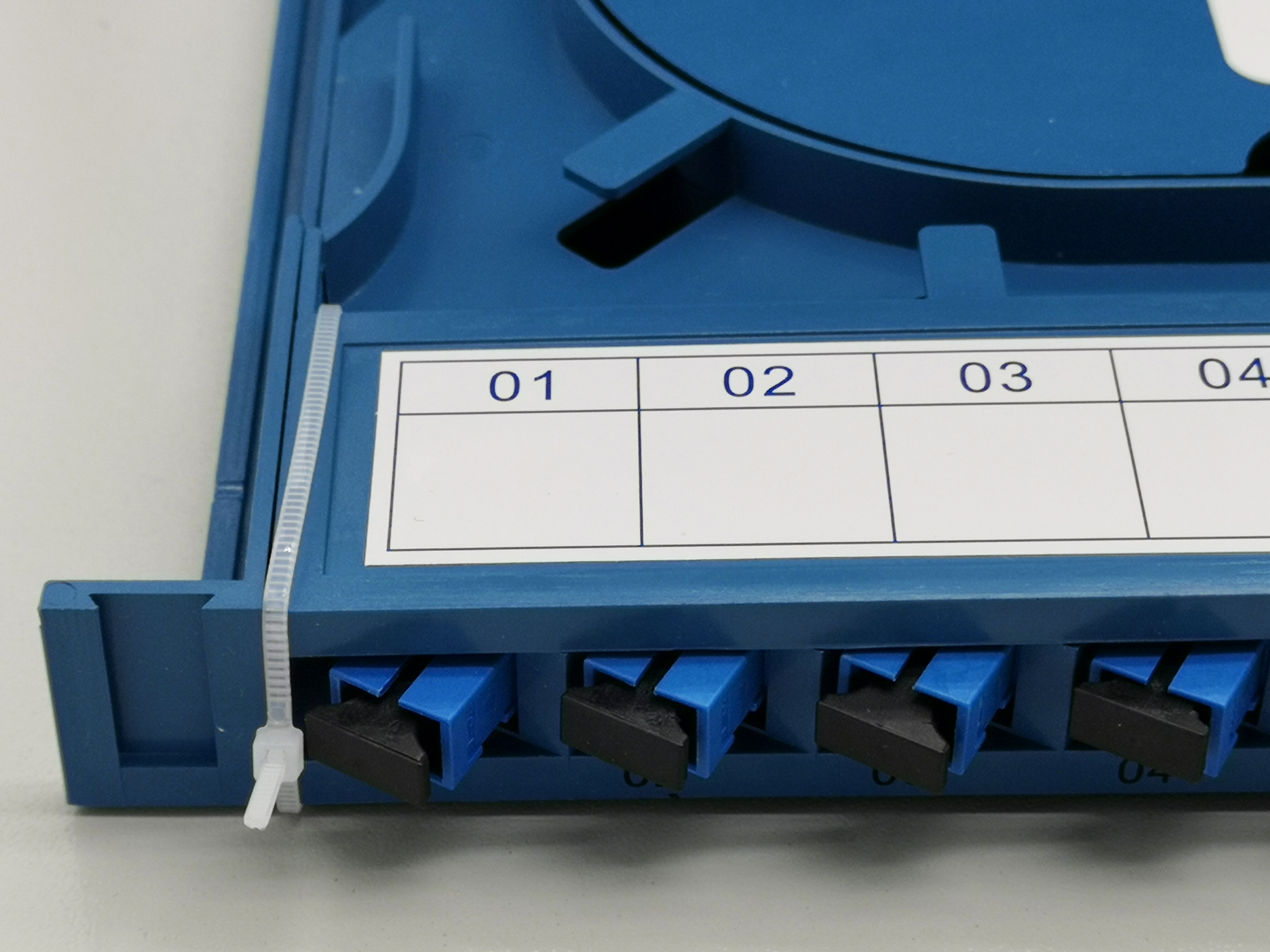

The ABS welding tray is a notable feature of this series. It is designed to provide additional stability and endurance to the series. The welding tray ensures the integrity of the entire setup, giving it a perfect appearance. Notably, it is incredibly easy to install the inlay and expand the capacity of the system with this welding tray.
The adapter has an obliquity of 30° making it ideal for ensuring the bend radius of patch cords. This design efficiently prevents laser burning eyes and ensures the safety of users. Additionally, the series features many different kinds of splicing and distribution marks. With these marks, it is easy to make records of fusion and distribution processes.
Overall, this series is more than your average system. It offers convenience, safety, and practicality. The ABS welding tray and oblique adapter are just two of the major features that make this system a must-have for anyone looking for an efficient and reliable option.
Features:
Product Features
Our product is a versatile option for rack and cabinet installations. It comes with a standard installation that is suitable for a variety of settings.

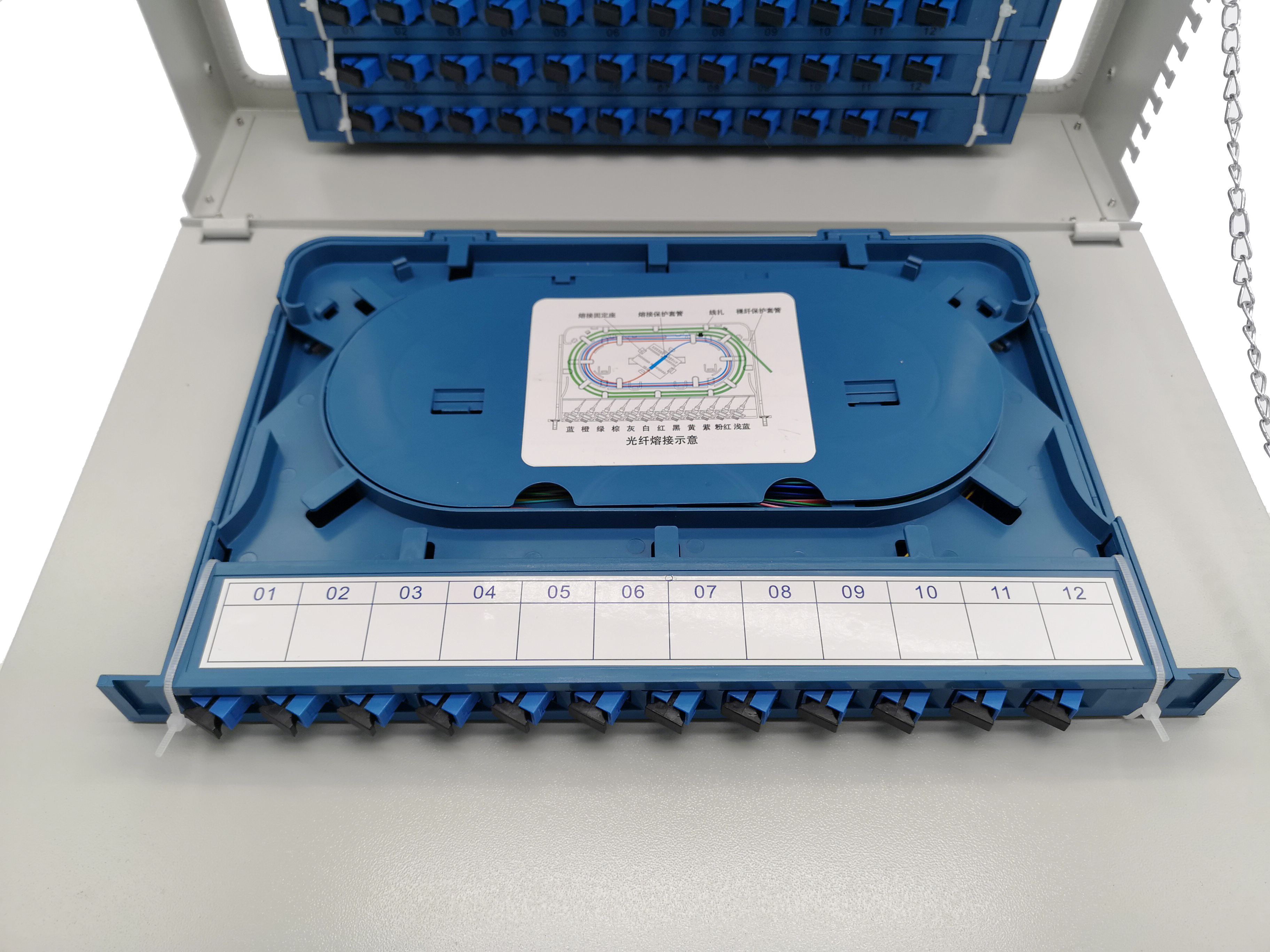

The product has a pull-out design that allows for easy field welding and welding wiring module integration. Each tray can accommodate up to 12/24pcs of FC, LC duplex, SC, and ST adapters, making it a versatile option for any setting.
The wide working space is designed to ensure efficient work and productivity, and the individual distribution panel is convenient for managing your cables.
We also offer OEM services, and customer logos can be printed or added as stickers to our products. Additionally, we provide fully loaded adapters and pigtails at the factory, making it easy for you to install the product right away.
Technical Parameters:
| Fiber Optics Components | Fiber Patch Panel Cassette |
| Enclosure Type | Rack Mountable |
| Adapters | FC, SC, ST, LC |
| Fiber Cable Management | Patch Cord & Pigtail & PLC Splitter |
| Door | Single Door |
| Capacity | LC 24 Core, SC 12 Core |
| Connector | SC LC FC ST |
| Rack Material | Cold Rolled Steel, AL |
| Environmental Temperature | -25 - 55°C |
| Width | 19 Inch |
| Connectors | SC/FC/LC/ST |
Applications:

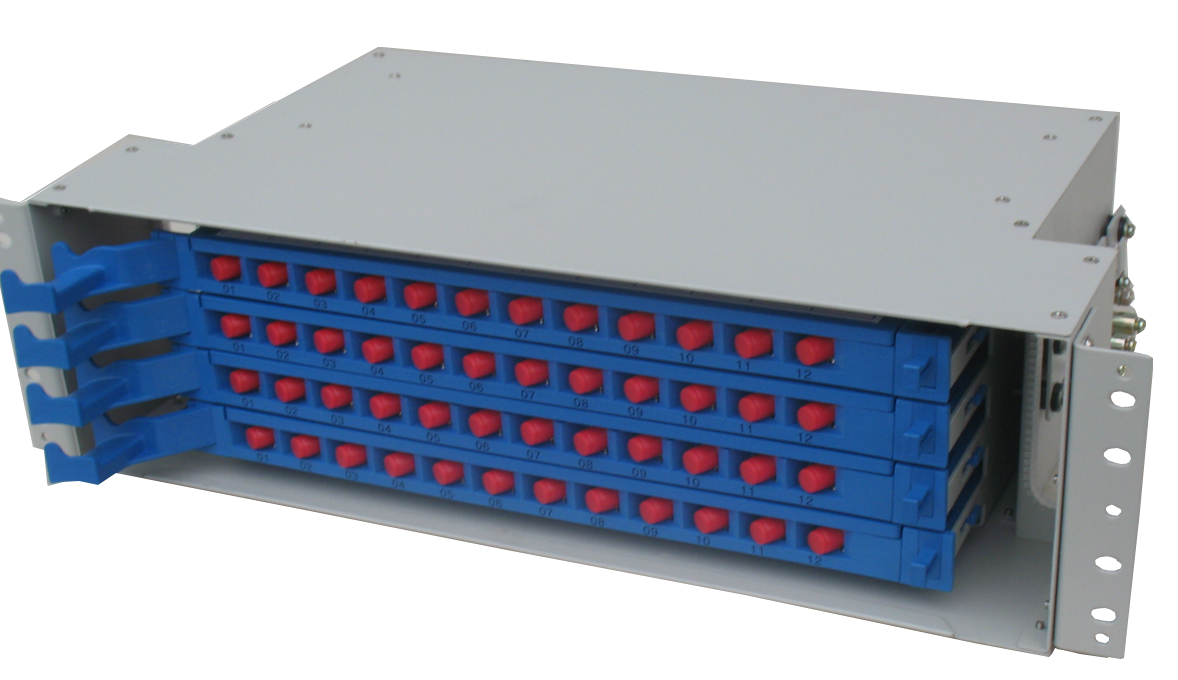

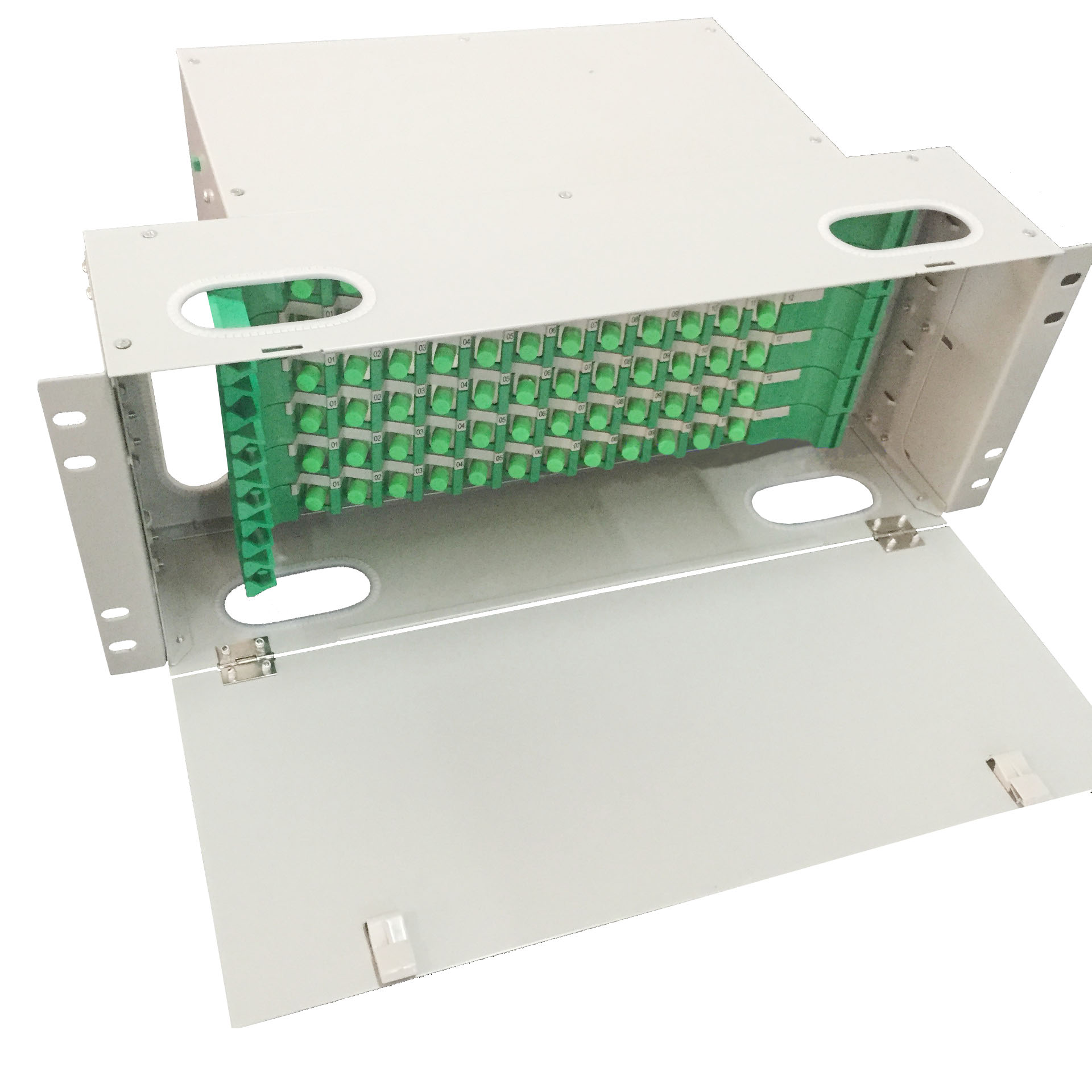

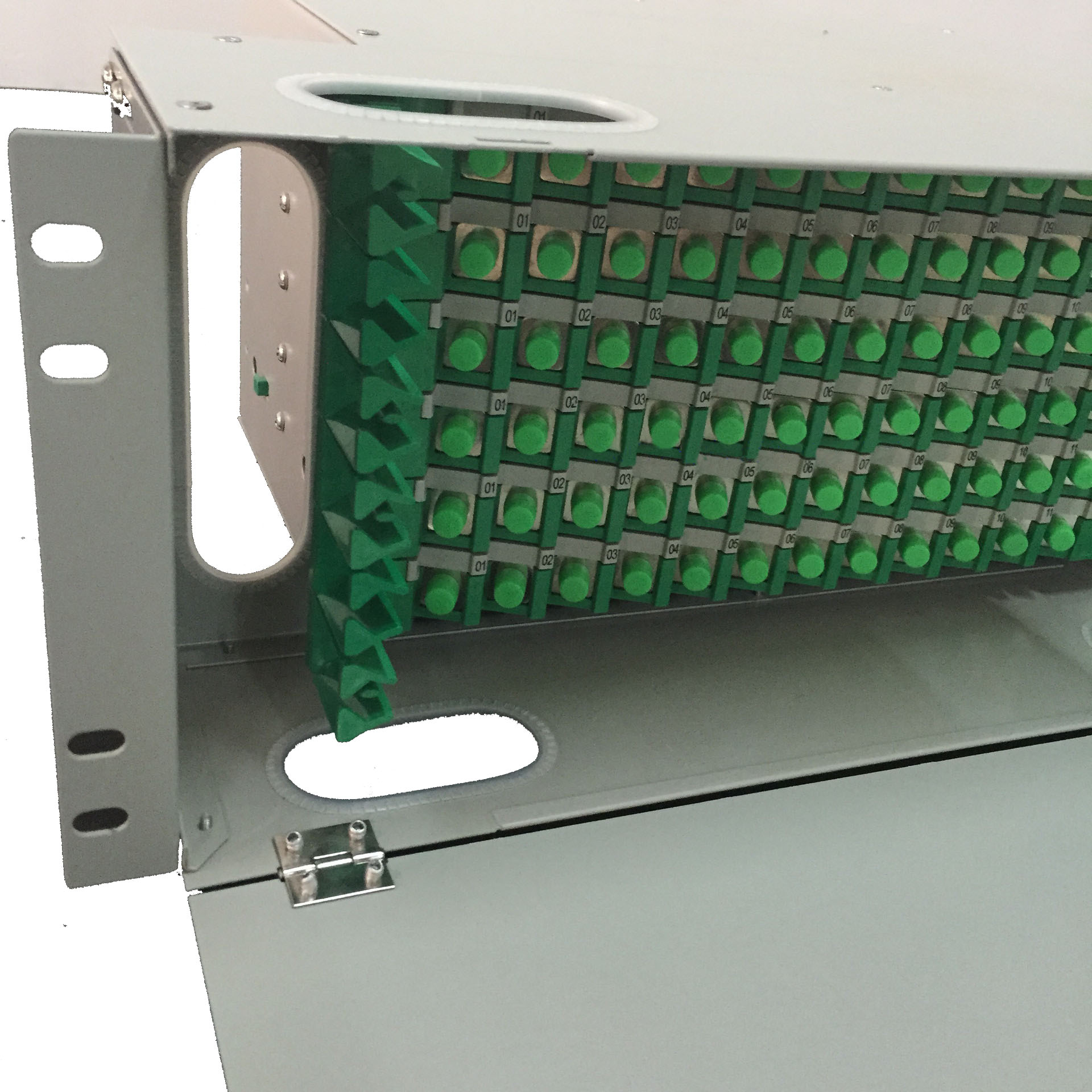

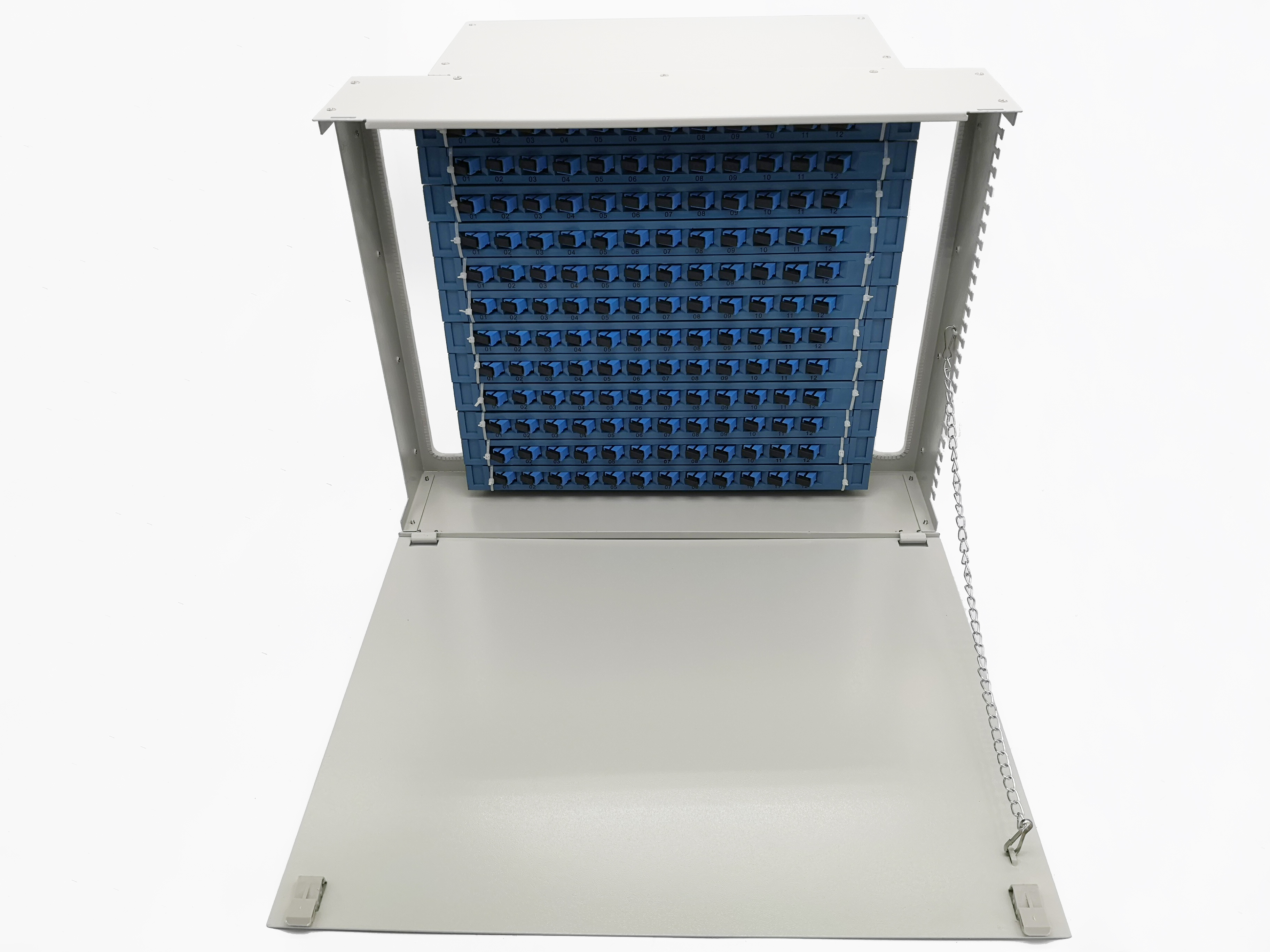

One of the major applications of the YINGDA Fiber Optic Patch Panel GB-A is in the telecommunications industry. It is an essential component of fiber optic networks and is used to terminate, splice, and manage fiber optic cables. The Fiber Optic Patch Panel is designed to be rack-mountable, which makes it easy to install and access. It is a great solution for data centers, server rooms, and other locations where multiple fiber optic cables need to be managed.
The Fiber Optic Splice Box is also a great application scenario for the YINGDA Fiber Optic Patch Panel GB-A. It provides easy access to fiber optic cables and allows for efficient cable management. This product is suitable for indoor and outdoor use, making it a versatile solution for a variety of applications.
The YINGDA Fiber Optic Patch Panel GB-A is available with a variety of adapter types, including FC, SC, ST, and LC. It can accommodate up to 144 fibers, making it suitable for large-scale fiber optic networks. The capacity of this product varies, with LC 24 core and SC 12 core being the most common.
The working temperature of the YINGDA Fiber Optic Patch Panel GB-A ranges from -25~55°C, which makes it suitable for use in a variety of environments. It is a durable and reliable product that can withstand harsh conditions.
Overall, the YINGDA Fiber Optic Patch Panel GB-A is a versatile and high-quality product that is suitable for a variety of applications and scenarios. It is an essential component of fiber optic networks and has become a popular choice for many businesses and organizations.
