FTTH Fast Installation Embedded Fiber Optical Mechanical Connector SC APC
Fast connector, also called field installable connector or quick assembly connector, is a good solution to the
field wiring operation and fiber to the home project. It is widely used in the construction site where need quick
and stable connection. Fast connection connector on site assembly don’t need curing and grinding, which
provides the engineers with more efficient help for the installation, maintenance, and repair.
The pre-embedded optical fiber and the core end face for the fast connector are designed to guarantee the
perfect quality of ceramic ferrule end face, effectively protect the user equipment interface damage, and
reduce the connection loss.
Specification
| Type | Parameters |
| Insertion loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return loss | ≤ -40dB |
| Bare fiber strength | >5N |
| Clad strength | >10N |
| Tension | >50N |
| Mechanical durability (500times) | IL ≤ 0.2dB & RL ≤ 5dB |
| Operating Temperature | 5 ºC to +70 ºC |
Product details

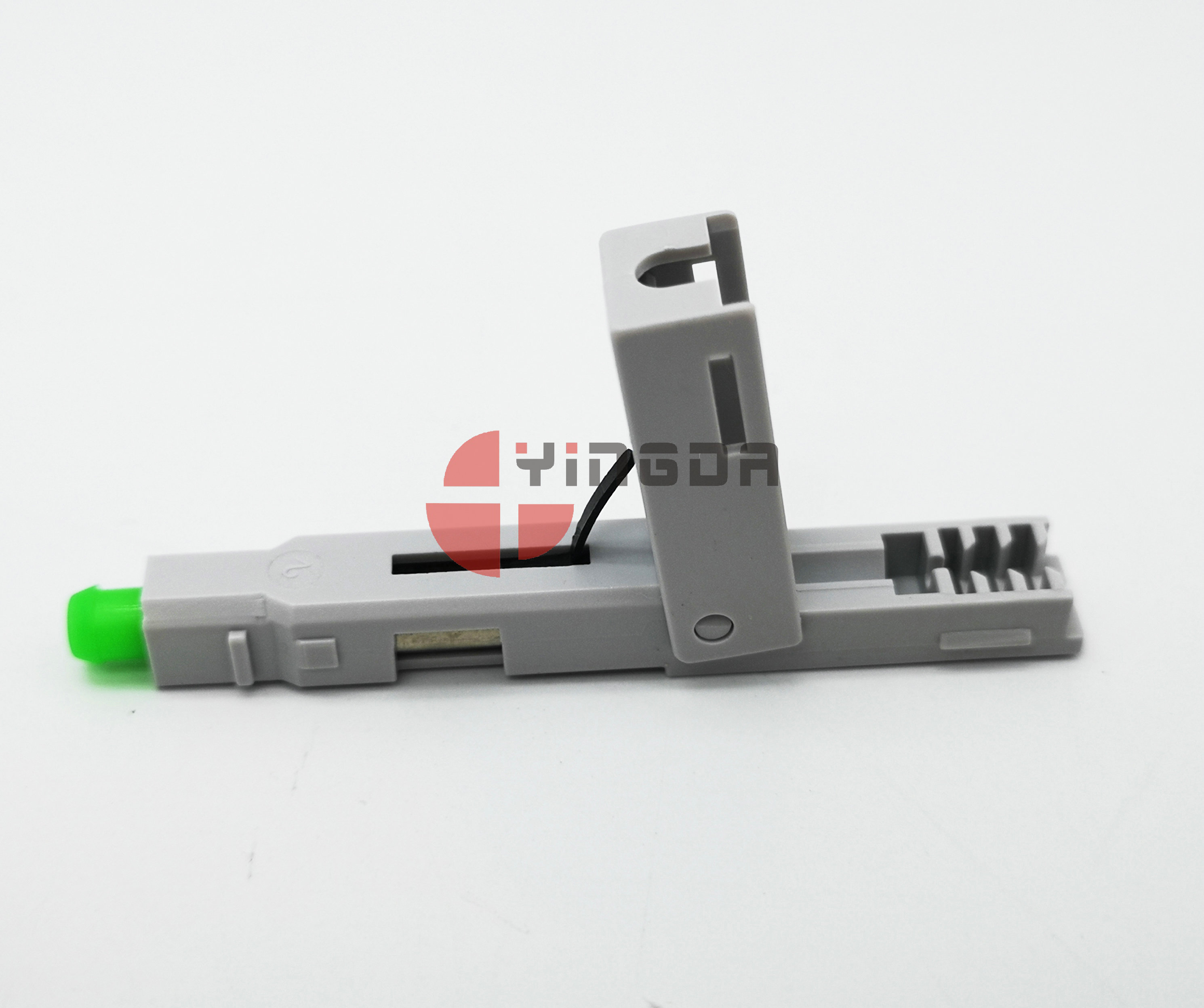

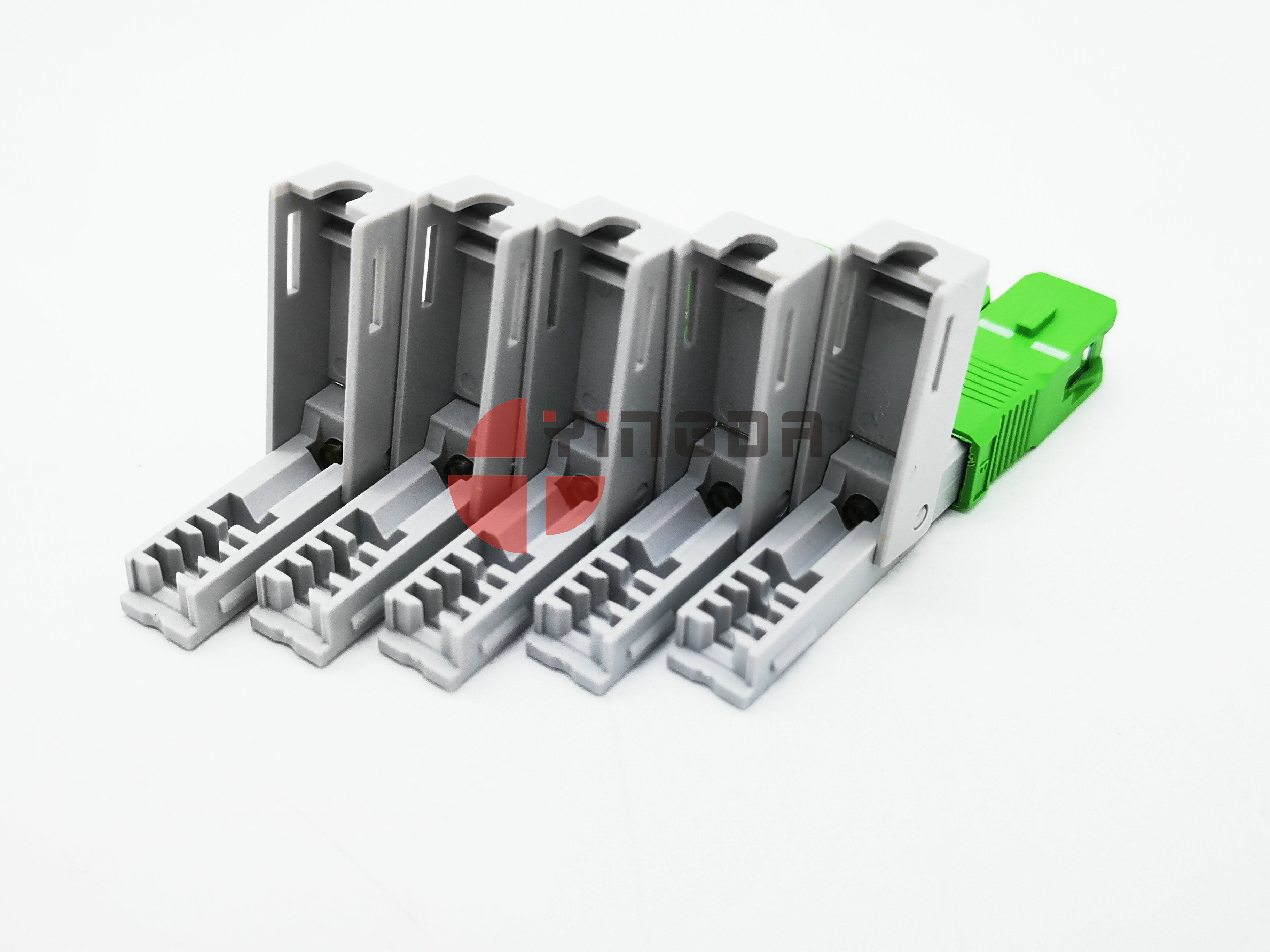

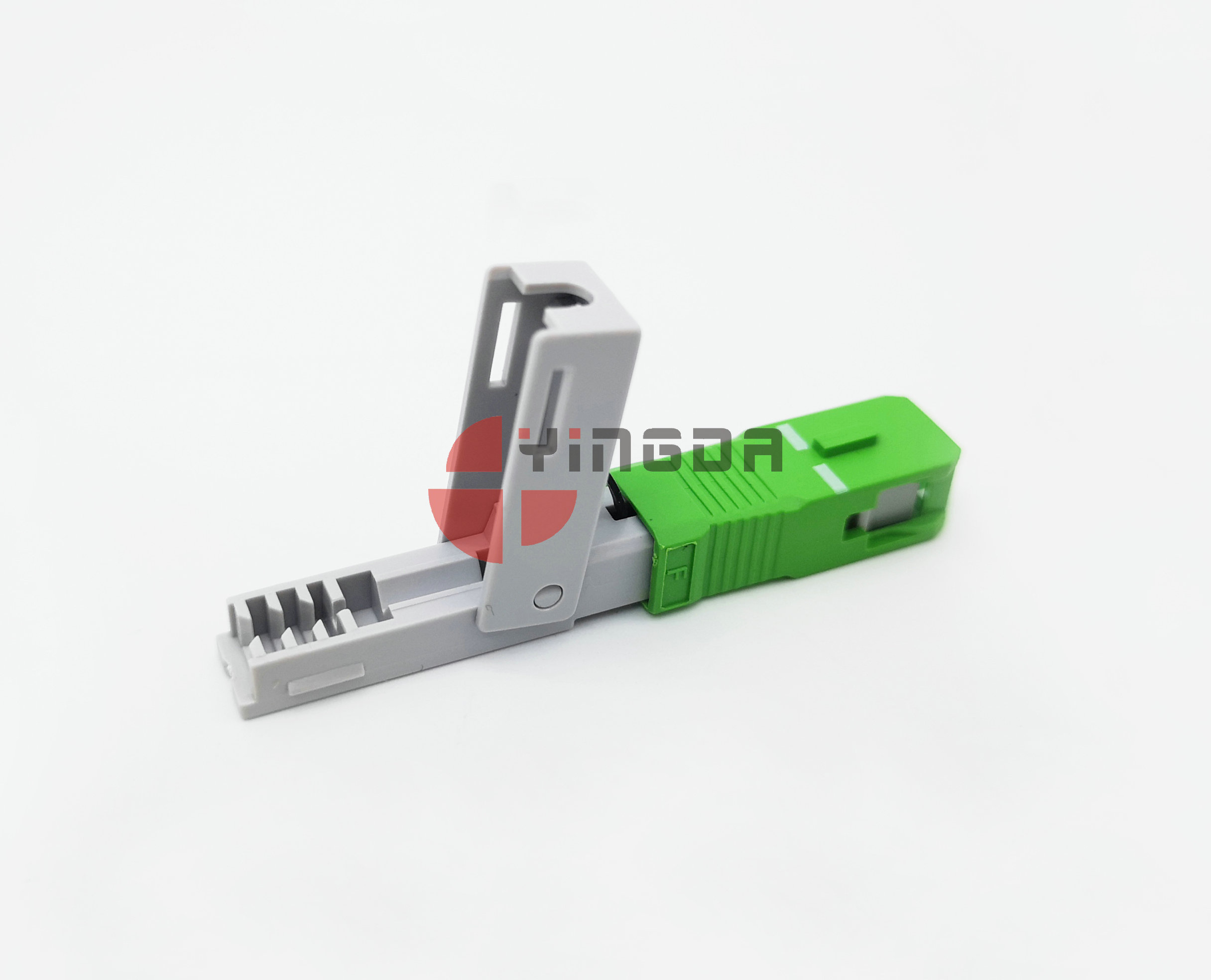

1. Stucture illumistration
the connector is square tail open, and insert the drop cable bare fiber, then press down to close it.
special new design, and fast construction, APC is green house and cap to distiguish from UPC.
small size, length:55mm, tensil>40N, can be use during -40~+85 degree temperature.
we will provide length-fixting cutting template, back cover open tool with the delivery.

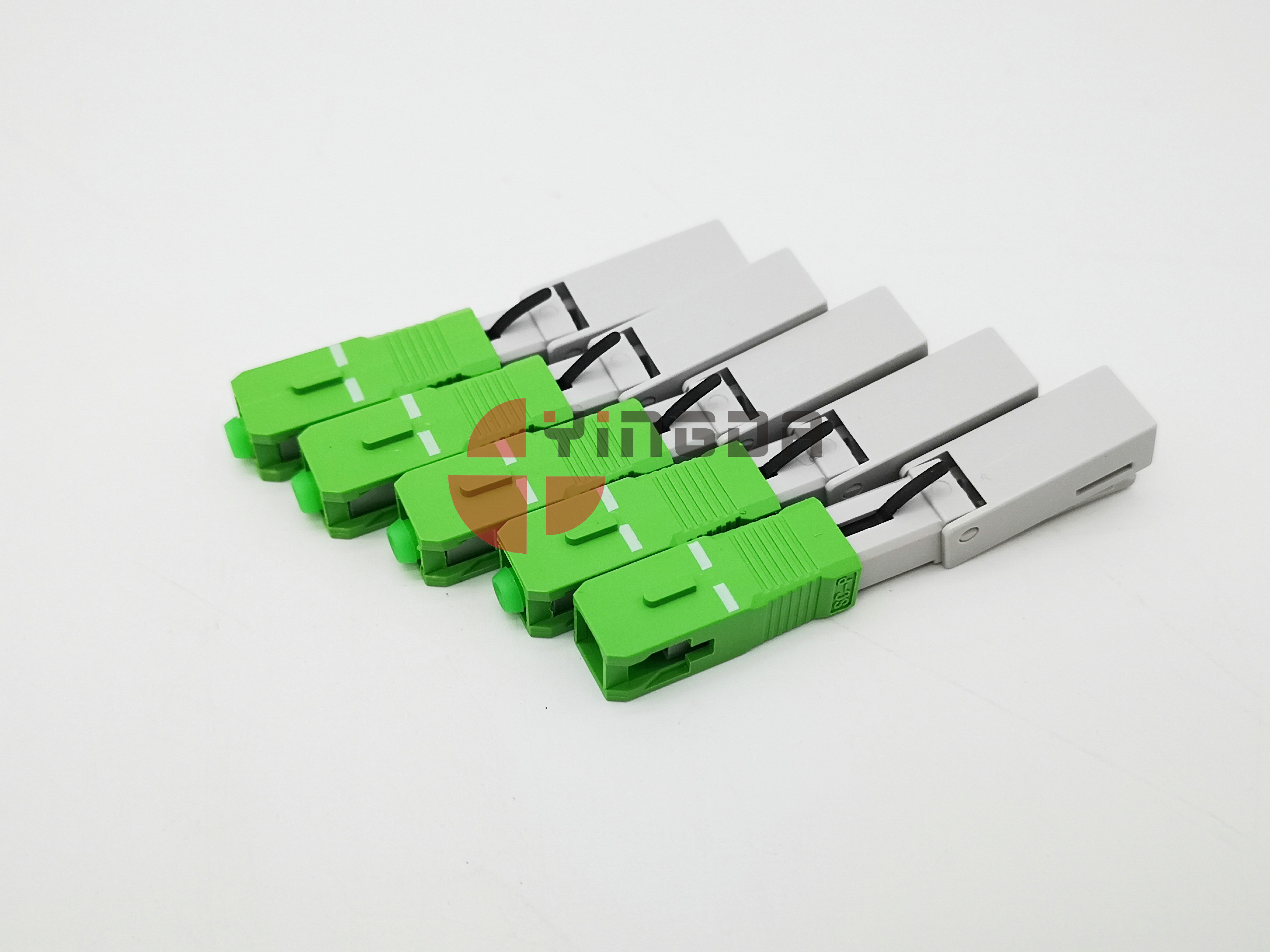

2. connector types:

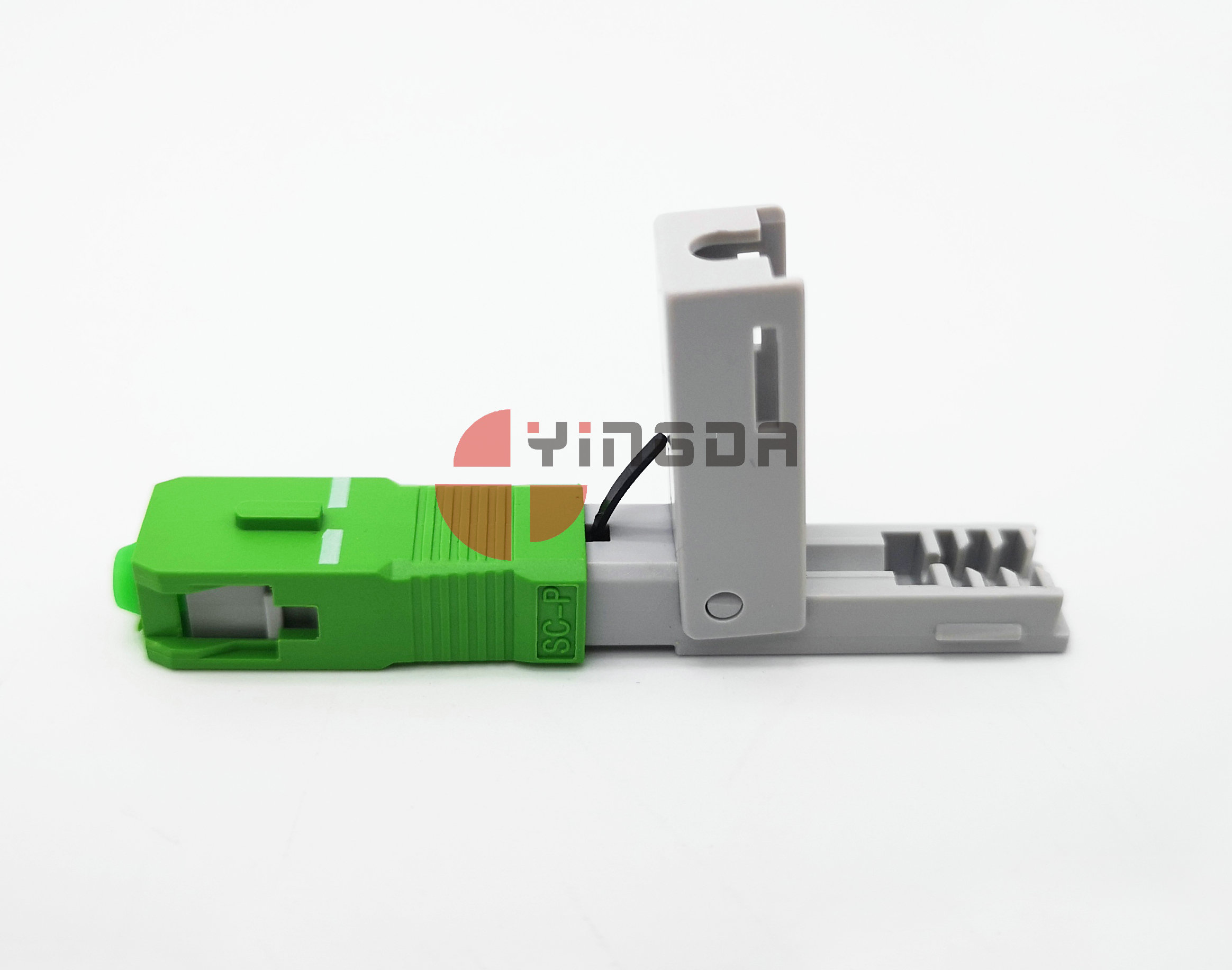

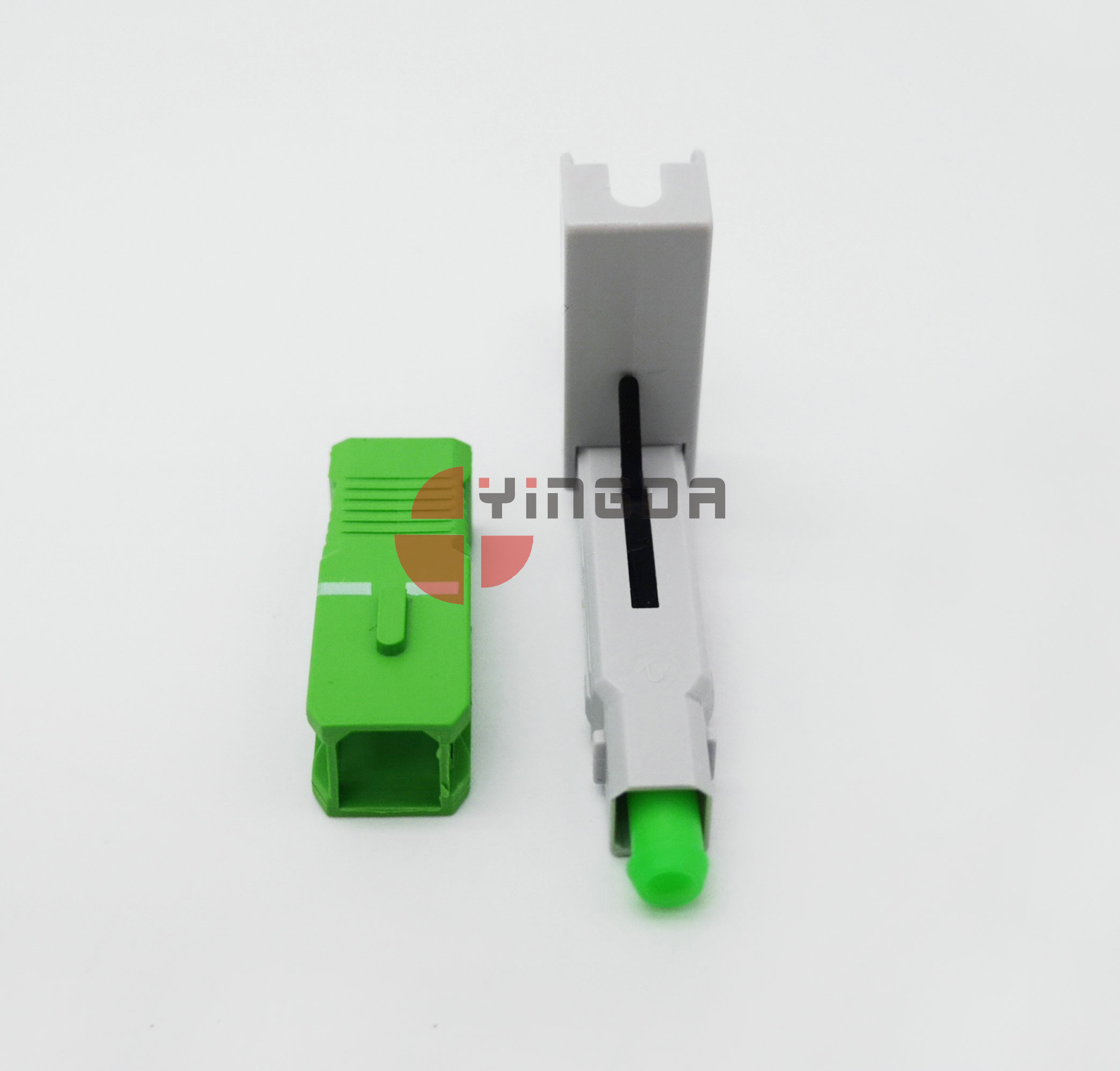

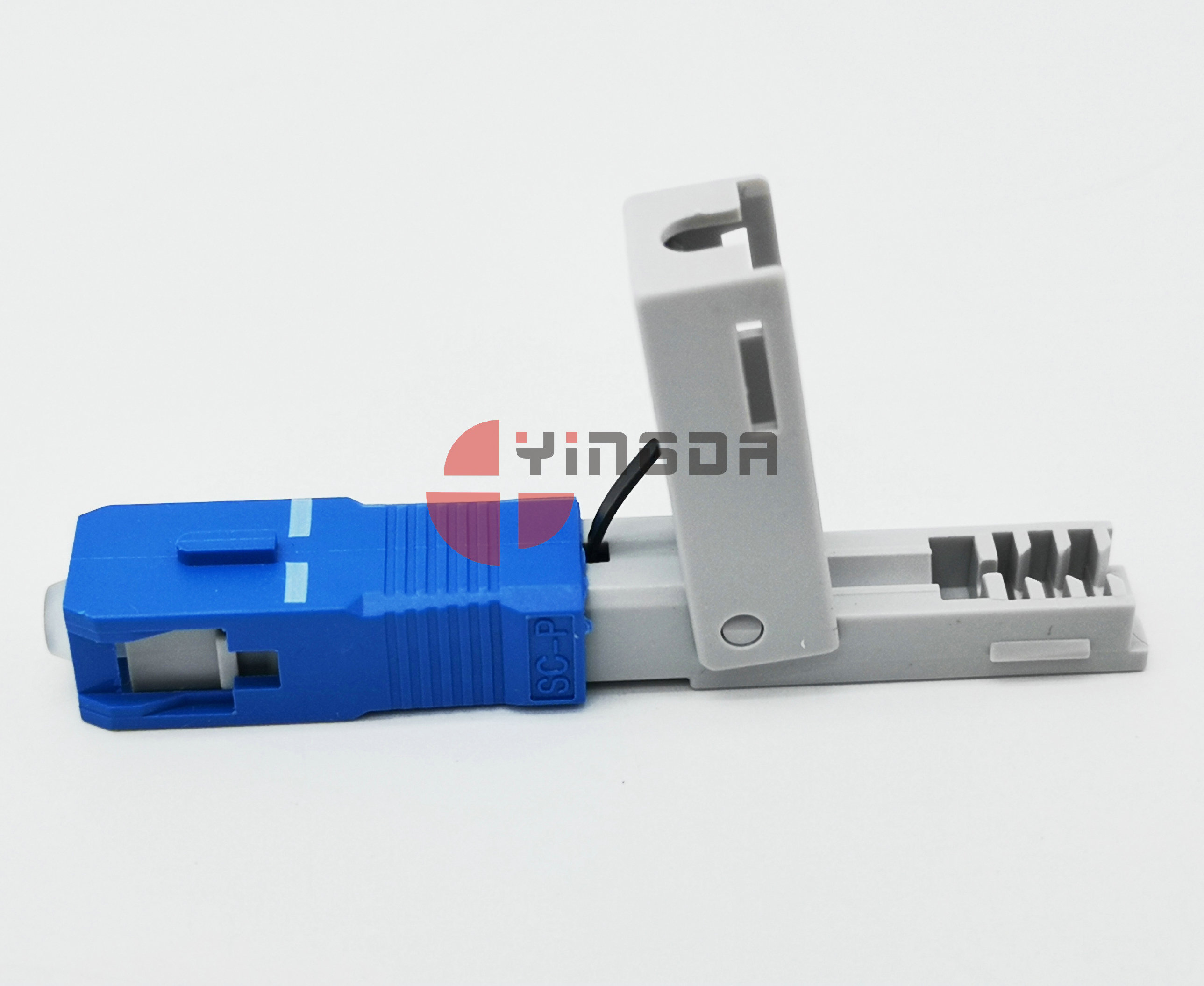

SC/UPC - Blue house and white dust cap SC/APC - green house and green dust cap
3. Package information:

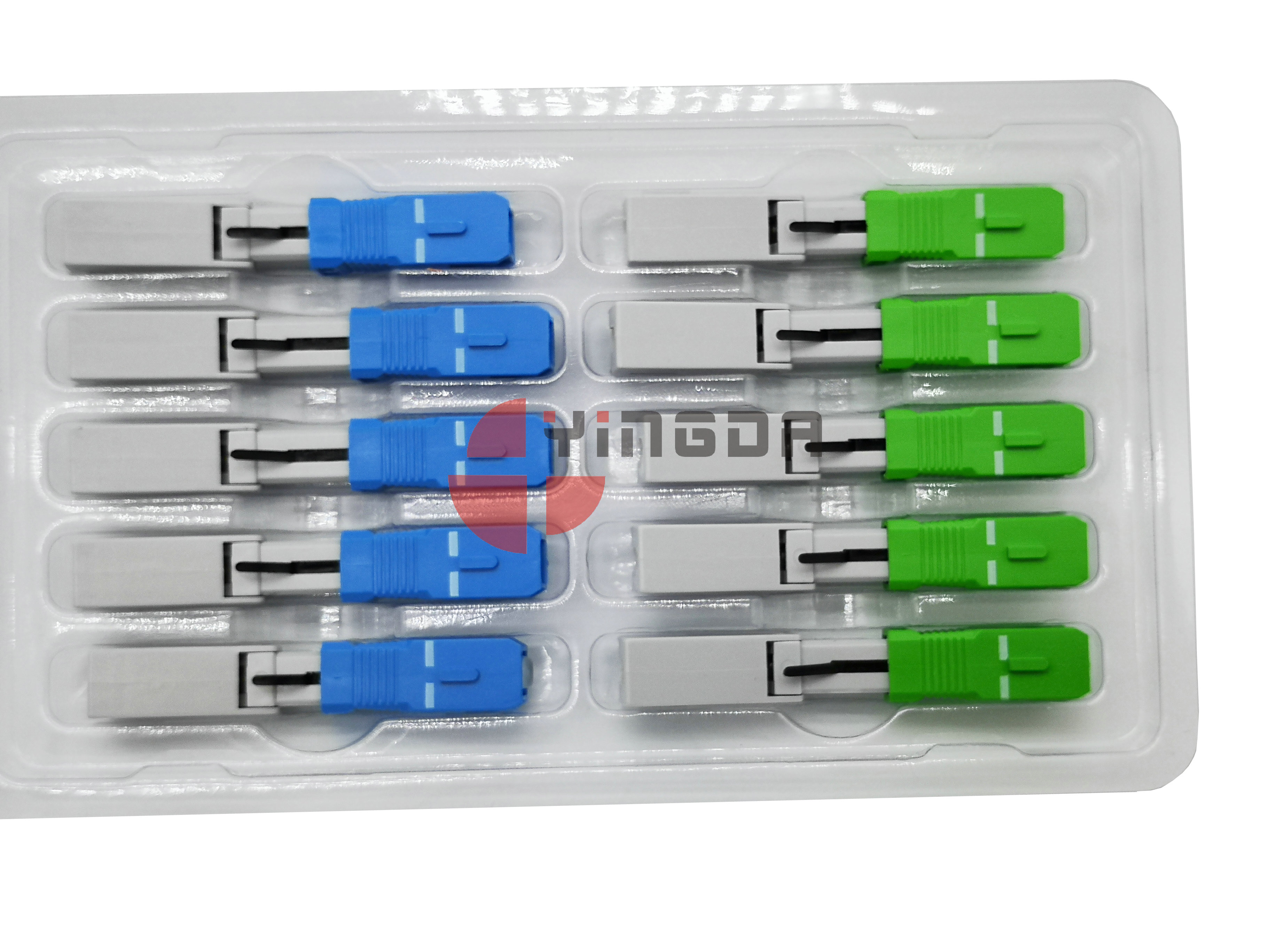

10 pcs / blister box, 1000pcs/ carton box, carton size: 48*34*23cm, gross eight: 6kg/carton box.
Features
- It can be used as a single connector and attenuator
- It has embedded optical fiber and end face pre-grinding
- On-site installation, quick connection, easy operation
- No need glue, grinding or electrical tools, a kind of cold access
- High performance and reliability, convenient installation
- Mechanical and environmental performance in line with GR-326-CORE standard.
Application
- Fiber optic cable distribution frame
- Optical fiber network equipment
- Fiber to the home
- Cable television network
Order information
FIC-XX-XXX-XX-XX
| FIC=filed installable connector | 1 | 2 | 3 | 4 | 5 |
| Connector type | Polish mode | Fiber type | Applicable cable | House color |
| SC FC SC LC ST | UPC APC | SM=Single mode MM=Multi mode | 09=0.9mm 20=2.0mm 30=3.0mm 23=2.0*3.1mm drop cable | B=Blue B=black G=green |
Product Tags:
|
|
Embedded Field Installable Connector FTTH SC APC Fast Connection 0.3dB Insertion Loss Images
|
